Simulations-Observations Comparison¶
make run-compare-sims-obs
Summary¶
This scripts loads observation data over given periode and area. It then loads the closest simulation data to these obersvation and saves both value in files. Afterward, those dataframes are compared through RMSE and Bias computation. The comparison output is saved into a file.
Configuration¶
The configuration file for this script is config/compare_sims_obs.toml (based on config/default/compare_sims_obs.toml). All the parameters and their functionality are listed below:
Input/Output¶
LOADING_DIR
Directory from which to load data.
default: "bgc_data"
Expected type: str
SAVING_DIR
Directory in which to save Observations and Simulations corresponding DataFrames.
default: "output"
Expected type: str
SIM_PROVIDER
Name of the simualted data provider.
default: "HYCOM"
Expected type: str
RESULT_OUTPUT_FILE
Output filepath. In this file will be saved the result of the comparison metrics.
default: "comparison_output.txt"
Expected type: str
Interpolation Parameters¶
TO_INTERPOLATE
Names of the variables to interpolate. The names are supposed to be the ones defined in config/variables.toml (config/default/variables.toml) by default.)
default: ["TEMP", "PSAL", "DOXY", "PHOS", "NTRA", "SLCA", "CPHL"]
Expected type: list[str]
INTERPOLATION_KIND
Kind of interpolation for scipy.interpolate.interp1d.
default: "linear"
Expected type: str
Comparison Parameters¶
VARIABLES_TO_COMPARE
Names of the variables to compare.
default: ["PTEMP", "DOXY", "PSAL", "NTRA", "SLCA", "PHOS", "CPHL"
Expected type: list[str]
Data Selection¶
DATE_MIN
Beginning of the data to load (included).
default: "20150101"
Expected type: str (respecting the YYYYMMDD format)
DATE_MAX
End of the data to load (included).
default: "20151231"
Expected type: str (respecting the YYYYMMDD format)
LATITUDE_MIN
Minimum latitude boundary for the loaded data (included).
default: 50
Expected type: intor float
LATITUDE_MAX
Maximum latitude boundary for the loaded data (included).
default: 90
Expected type: intor float
LONGITUDE_MIN
Minimum longitude boundary for the loaded data (included).
default: -180
Expected type: intor float
LONGITUDE_MAX
Maximum longitude boundary for the loaded data (included).
default: 180
Expected type: intor float
DEPTH_MIN
Minimum depth boundary for the loaded data (included).
default: nan
Expected type: int or float
DEPTH_MAX
Maximum depth boundary for the loaded data (included).
default: 0
Expected type: int or float
Others¶
SHOW_MAP
Whether to show the map of all compared points or not
default: false
Expected type: bool
VERBOSE
Verbose value, the higher, the more informations. If set to 0 or below: no information displayed. If set to 1: minimal informations displayed. If set to 2: very complete informations displayed. If set to 3 or higher: exhaustive informations displayed.
default: 3
Expected type: int
Script Output¶
When executed, the script will finally output a file named RESULT_OUTPUT_FILE.

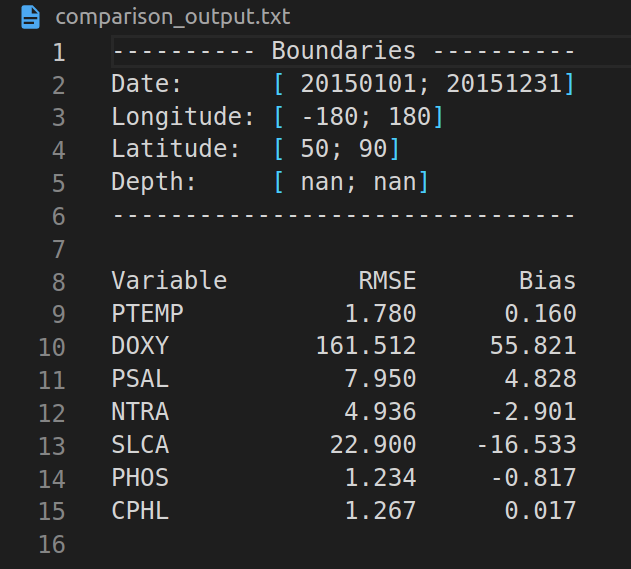

This is an example of what this file could look like (values are only for illustration purpose and do not reprersent anything):
If SHOW_MAP is set to true, a visualisation of the matched point is also displayed.

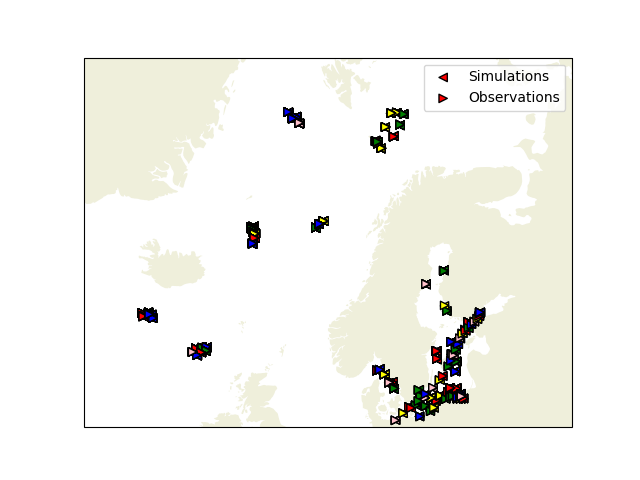

This is an example of what this image could look like:
