Interactive Map¶
make run-plot_interactive
Summary¶
This scripts shows an interactive map on which it is possible to draw polygon in order to view data density and profile on a given area.
The following keys are used to interact with this map:
- D to start drawing a polygon, then:
- Left Click to draw polygon (keep the button clicked).
- Middle Click to close the polygon shape.
- Enter key to confirm the drawn polygon as area to zoom in.
- Z key to remove the polygon.
- S to save the data within the polygon (then you must enter a filename in the terminal).
- P to save the polygon (then you must enter a filename in the terminal).
- L to load a polygon (then you must enter the name of the file to load).
Configuration¶
The configuration file for this script is config/plot_interactive.toml (based on config/default_plot_interactive.toml). All the parameters and their functionality are listed below:
Input/Output¶
LOADING_DIR
Directory from which to load the data.
default: "bgc_data"
Expected type: str
POLYGONS_FOLDER
Directory from which to load already existing polygons and in which to save the drawn polygons.
default: "polygons"
Expected type: str
Data Selection¶
VARIABLE
Name of the variable to map. The names are supposed to be the ones defined in config/variables.toml (config/default/variables.toml) by default.). If 'all': will map density of datapoints, regardless of their variables.
default: "all"
Expected type: str
DATE_MIN
First date to map (included).
default: "20070101"
Expected type: str (must match the YYYYMMDD format)
DATE_MAX
Last date to map (included).
default: "20071231"
Expected type: str (must match the YYYYMMDD format)
LATITUDE_MIN
Minimum latitude boundary to consider for the loaded data (included).
default: 50
Expected type: int or float
LATITUDE_MAX
Maximum latitude boundary to consider for the loaded data (included).
default: 90
Expected type: int or float
LONGITUDE_MIN
Minimum longitude boundary to consider for the loaded data (included).
default: -180
Expected type: int or float
LONGITUDE_MAX
Maximum longitude boundary to consider for the loaded data (included).
default: 180
Expected type: int or float
DEPTH_MIN
Minimum depth boundary to consider for the loaded data (included).
default: nan
Expected type: int or float
DEPTH_MAX
Maximum depth boundary to consider for the loaded data (included)
default: 0
Expected type: int or float
EXPOCODES_TO_LOAD
Precise expocode to load alone. If empty, no discrimination on expocode will be conducted.
default: []
Expected type: list[str]
PRIORITY
Providers priority list to use when removing duplicates
default: ["GLODAP_2022", "CMEMS", "ARGO", "NMDC", "CLIVAR", "IMR", "ICES"]
Expected type: list[str]
Mapping Options¶
LATITUDE_MAP_MIN
Minimum latitude boundary displayed on the map (included). If set to nan, the map boundaries will match the extremum of the dataframe
default: 50
Expected type: int or float
LATITUDE_MAP_MAX
Maximum latitude boundary displayed on the map (included). If set to nan, the map boundaries will match the extremum of the dataframe
default: 90
Expected type: int or float
LONGITUDE_MAP_MIN
Minimum longitude boundary displayed on the map (included). If set to nan, the map boundaries will match the extremum of the dataframe
default: -180
Expected type: int or float
LONGITUDE_MAP_MAX
Maximum longitude boundary displayed on the map (included). If set to nan, the map boundaries will match the extremum of the dataframe
default: 180
Expected type: int or float
BIN_SIZE
Bins size. If list, first component is latitude size, second is longitude size. If int or float, represents both latitude and longitude size.
default: [0.5, 1.5]
Expected type: list[float] or list[int] or float or int
CONSIDER_DEPTH
If true: the plotted density will consider all data points (even the ones in the water column). If false: the plotted density will only consider one data point per location and date
default: true
Expected type: bool
Script Output¶
When executed, this script will display an interactive map with three panels:
- The general map of the loaded data, on the left panel.
- A zoomed view of any selected data, on the top right panel.
- A depth vs date density view of any selected data, on the bottom right panel.

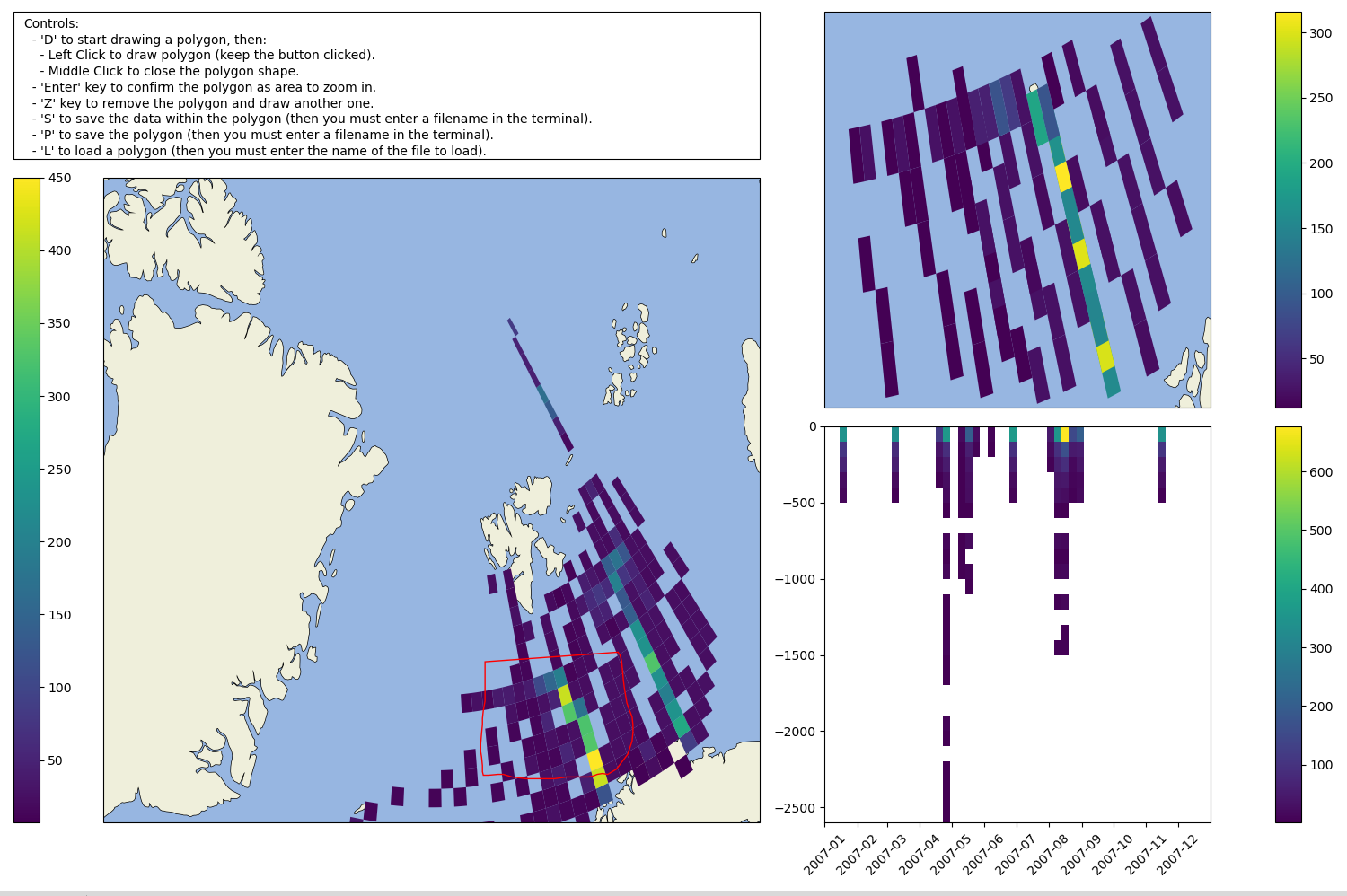

This is an example of what the displayed figure could look like:
